2D14M 1pc Motor drive unit PPS
2D14M1pc
| Category | Motor drive unit |
| Manufacture | PPS |
| Stock | Order |
| Ship date | 1week (inquiry before Shipment) |
| Price | US$108.67 |
| Standard Packing Qty | 1pc |
| Minimum Order Qty | 1pc |
Motor control components
2-phase unipolar microstep drive
2 Phase microstep pulse motor driver
2-Phase Microstep output of 1.0A/phase RMS
Cost-effective, ultra-compact, high-efficiency
Highest reliability due to simple design
Enforcement corresponding to RoHS compliance
Power supply DC12 to 40V, 1.2A Max
Driving method : Unipolar chopper constant current
Out put current : 0.2A to 1.0A/Phase
Excitation method : Microstep 1/1 to 1/60 division
Max clock frequency : 500kpps

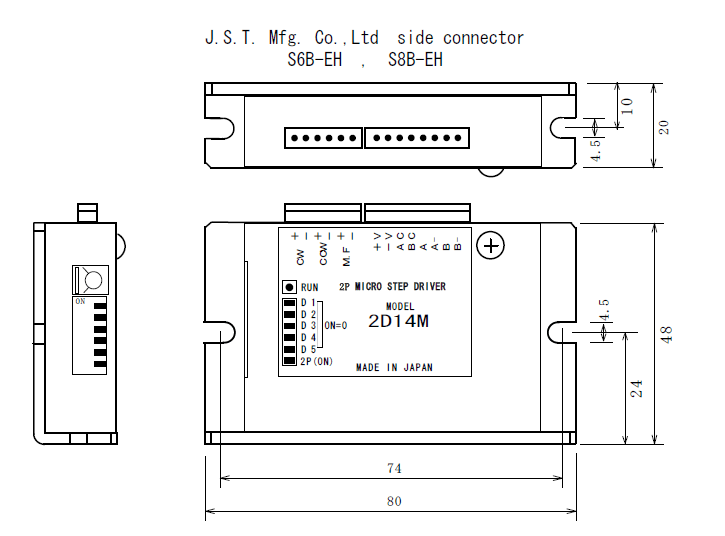

Dimensions : 48LX80WX22H ( exclude connector and projection)
Net weight : 80g
Operating temperature : 0 to 40℃
Storage temperature : -10 to +60℃
RoHS compliant
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| 2D14M 1pc | 1pc | US$108.67 | US$108.67 | 1pc | 1week |
