Electronic Components Distributor > PPS > Motor drive unit > 5-phase microstep driver (AC input) > 5D1AM 1pc
5D1AM1pc
Category Motor drive unit
Manufacture PPS
Stock Order
Ship date 1week (inquiry before Shipment)
Price US$266.67
Standard Packing Qty 1pc
Minimum Order Qty 1pc
Quantity cart
PPS 5-phase microstep driver (AC input) 5D1AM 1pc

Motor control components
5-phase microstep driver (AC input)

5 Phase AC power supply microstepper motor driver
5-Phase Microstep high output of 1.5A/phase RMS
Cost-effective, ultra-compact, high-efficiency
Highest reliability due to simple design
Enforcement corresponding to RoHS compliance
Power supply AC100V - 115V ±10% 50/60Hz 4A Max
Driving method : 5 pentagon wiring , bipolar ,chopper constant current
Output current : 0.25A to1.50A/Phase( L-excitation), 0.13A to 0.75A/Phase (H-excitation)
Max clock frequency : 400kpps
Net weight :530g
Operating temperature : 0 to 40℃
Storage temperature : -10 to +70℃
RoHS compliant

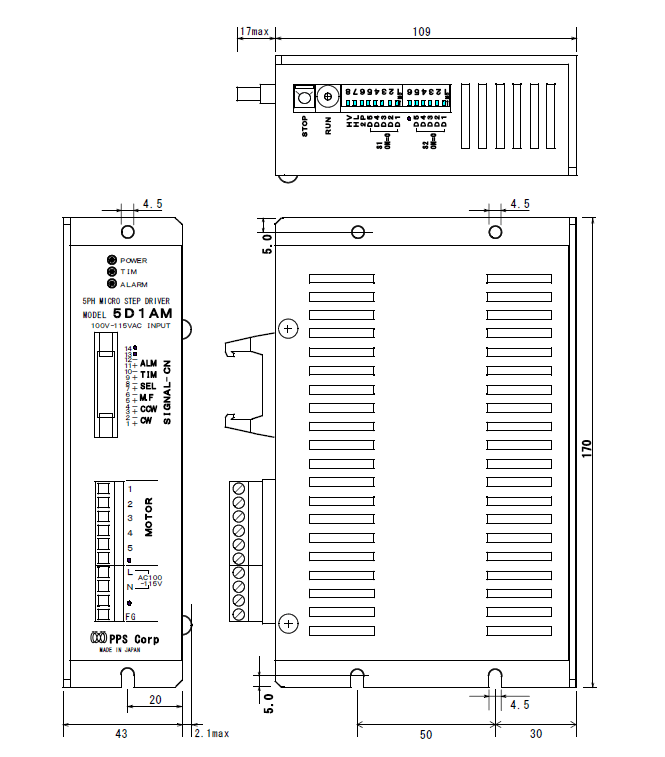

Dimension_pps_5d1am.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
5D1AM 1pc 1pc US$266.67 US$266.67 1pc 1week
